Using microSD Memory Card

This device is equipped with a microSD memory card slot.

Note

A microSD card is sold separately.

microSD memory cards can be used as external memory (maximum of 64GB) for this device, to transfer data between PCs, digital cameras, video cameras and music players.

NOT supporting the exFAT format. Supporting: FAT32 and NTFS format. NOTICE: under the NTFS format, only files and file holders that are given with names made of alphanumeric characters can be read; unable to write in. Under the FAT32 format, both reading and writing are possible (file and file holder names not restricted to alphanumeric characters).

To insert

1Open the cover of the microSD memory card slot.

Open the cover

2Check the direction to insert the microSD memory card.

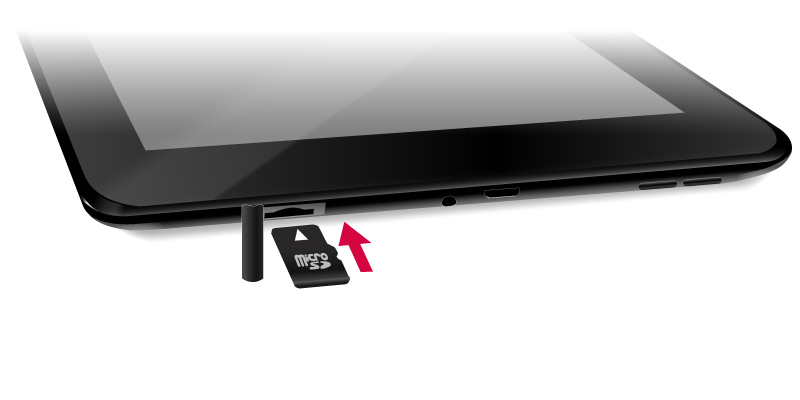

3Insert the microSD memory card straight into the slot with its printed surface facing up until it clicks into place.

insert the microSD

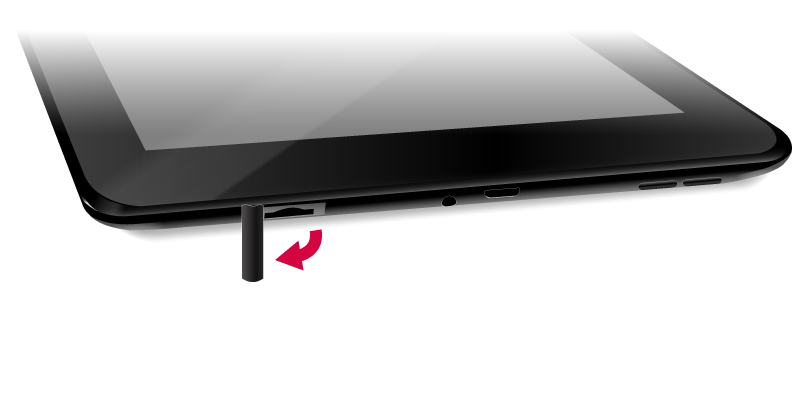

4Close the cover of the microSD memory card slot.

Check that the cover is closed properly, without any gaps.

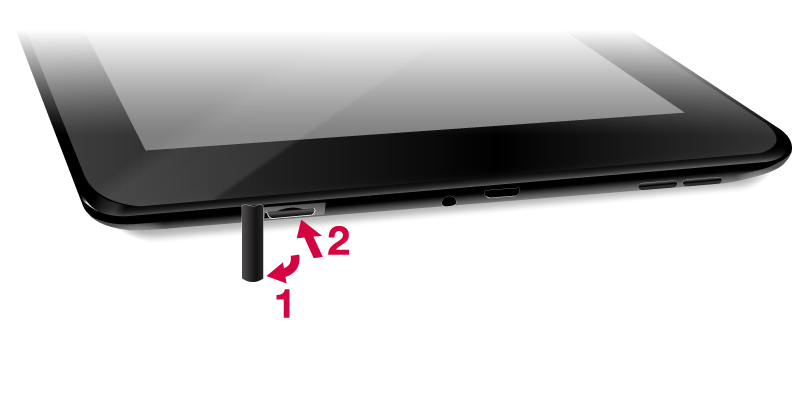

To remove

1Open the microSD memory card slot cover.

2Press the microSD memory card until it clicks, and gently draw it out.

1 2

Note

Do not remove the microSD memory card while data is being written or read.
